KOMPACTO – Mobile plant for the production of Cellular and Lightweight Concrete.
The KOMPACTO is a ALL-IN-ONE 1.0 m3 (1,000 liters) Cellular / Lightweight Concrete Mixer with a horizontal srew pump and a foam generator. This equipment has been designed to be very compact so it can be used in even in small environments, but at the same time maintain high and consistent output. Special attention has ben paid to ease of use, convenience in cleaning and simplified maintenance.
With a robust and compact lightweight structure (dimensions: 1950x1450x1080 mm and weight: 780 kg), the KOMPACTO 3×1 is easy to carry to wherever you want. Built with top quality materials, the equipment mixes and pumps a cubic meter of mixture in 5-8 minutes cycles producing up to 12 m3 of cellular/lightweight concrete per hour when manually fed with materials.
Características
- solid and compact structure
- reduced weight and dimensions
- water dispenser with timer
- remote control for easy handling
- mixing and pumping in just 5 minutes
- high performance production
- perfect mixing of cement with EPS
- easy cleaning and maintenance
- Flow Meter
Technical Information
| KOMPACTO 3X1 N + Foam Generator + Pump | |
| Capacity: | 1.000 liters / 1 m3 |
| Dimensions (w x l x h): | 1.950 x 1.450 x 1.080 mm |
| Weight: | 780 Kg. |
| Production capacity: | 10 to 12 m3/h. |
| Maximum pumping distance: | Horizontally: 80 meters Vertically: 30 meters |
| Power: | 14 Kw |
KOMPACTO 3X1 N – with Foam Generator & Pump
| Usable volume | 1 m3 – 1.000 liters |
| Dimensions in millimeters | 1950(width) x 1450(length) x 1080(height) |
| Weight | 780 Kg |
| Production capacity | 10 – 12 m3 / h |
| Pumping | Maximum distance: 90 meters horizontally, 45 meters vertically |
| Power | 14 Kw |
| Frequency | 50 Hz |
| Volts | 380 V |
The KOMPACTO is suitable for mixtures with agents such as cement, fine sand, fly ash, organic & inorganic fibers, polystyrene, etc;

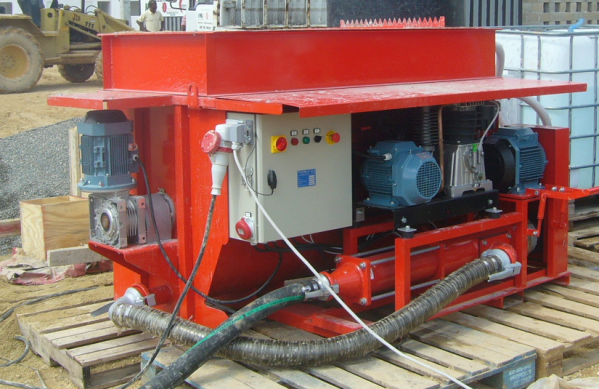

KOMPACTO 3X1 R – REINFORCED
| Usable volume | 1 m3 – 1.000 liters |
| Dimensions in millimeters | 1950(width) x 1450(length) x 1250(height) |
| Weight | 950 Kg |
| Production capacity | 10 – 12 m3 / h |
| Pumping | Maximum distance: 90 meters horizontally, 45 meters vertically |
| Power | 14 Kw |
| Frequency | 50 Hz |
| Volts | 380 V |
Version with REINFORCED STRUCTURE AND ENGINE for the production of cellular and lightweight concrete with density up to 1,600 kg/m3 and aggregates (gravel) with a particle size of up to 9 mm.

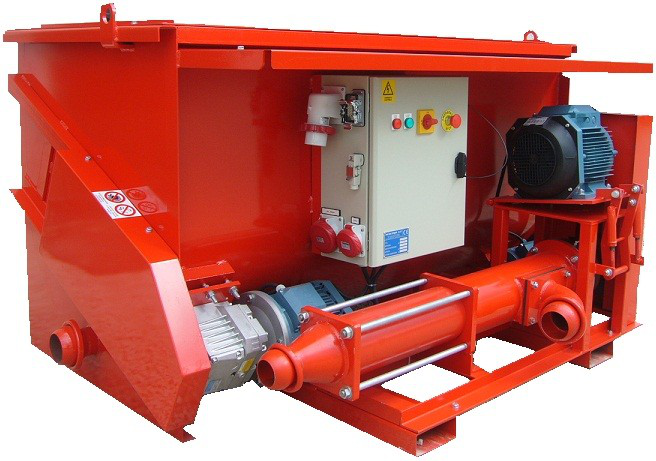

KOMPACTO 2X1 N
| Usable volume | 1 m3 – 1.000 liters |
| Dimensions in millimeters | 1950(width) x 1450(length) x 1080(height) |
| Weight | 630 Kg |
| Production capacity | 10 – 12 m3 / h |
| Pumping | Maximum distance: 80 meters horizontally, 30 meters vertically |
| Power | 9 Kw |
| Frequency | 50 Hz |
| Volts | 380 V |
Mixer with a capacity of 1,000 liters + pump WITHOUT Foam Generator.

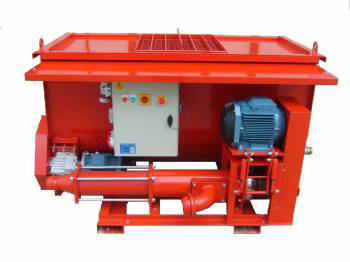

KOMPACTO 2X1 – 500 LITERS
| Usable volume | 0.5 m3 – 500 liters |
| Dimensions in millimeters | 1685(width) x 1300(length) x 970(height) |
| Weight | 530 Kg |
| Production capacity | 5 – 6 m3 / h |
| Pumping | Maximum distance: 80 meters horizontally, 30 meters vertically |
| Power | 9 Kw |
| Frequency | 50 Hz |
| Volts | 380 V |
Mixer with a capacity of 500 liters + pump WITHOUT Foam Generator.
